GALVACO W-BEAM GUARDRAIL
Guardrail are metal safety barriers installed on roads and highways. Guardrails are used to prevent vehicles from veering off towards oncoming traffic, crashing into solid objects or straying into dangerous or off-limit areas.
A cost-effective road safety barrier system, GALVACO W-Beam Guardrails are manufactured with high strength steel and installed on multiple posts to form a strong band to absorb sudden impact from vehicles
Likelihood of vehicle overturning is less with a w-beam metal guardrail due to its impact absorption ability, compared to concrete barrier which is stiff.

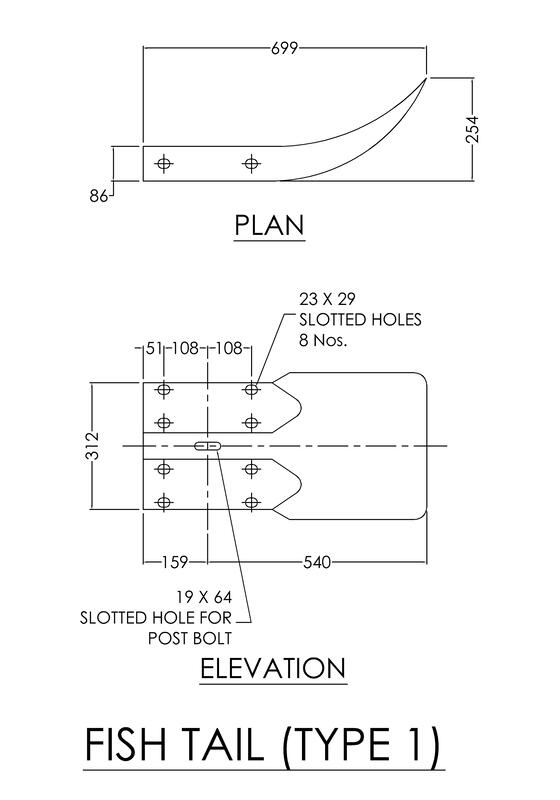

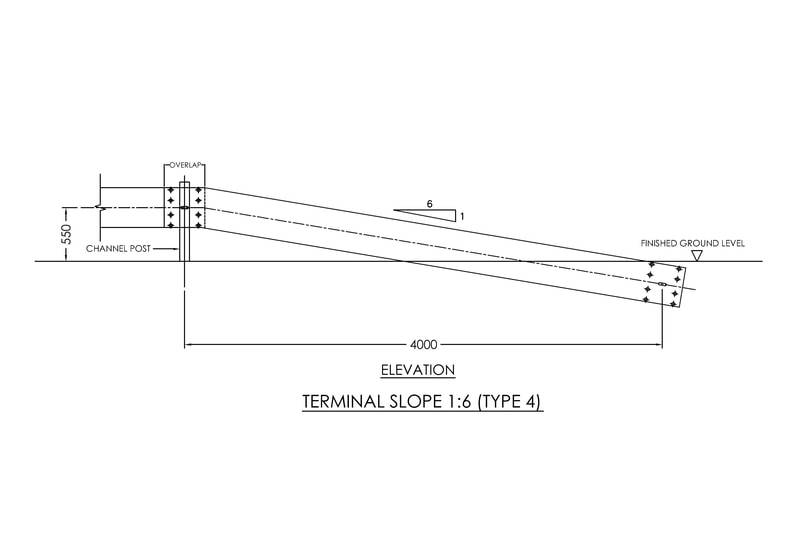

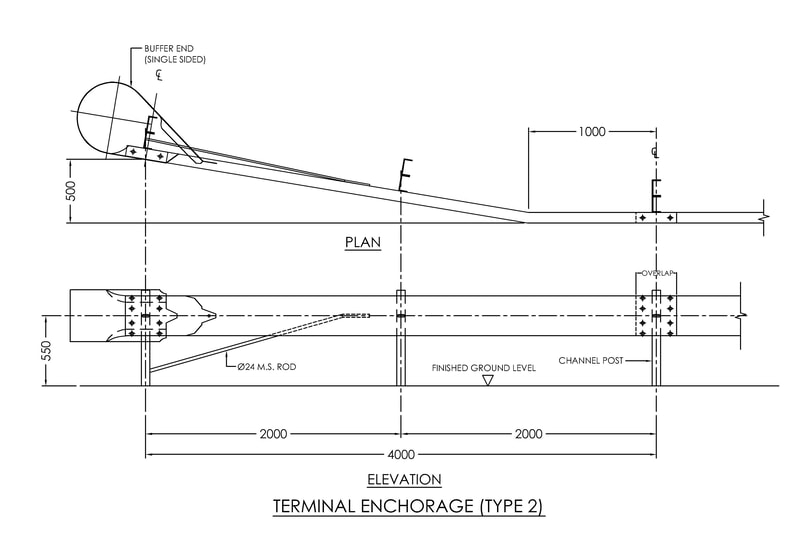

Variety of end sections are available in the GALVACO W-Beam Guardrail system including "Fish-Tail" End Treatment, Terminal Anchorage Unit (Type 2), 90° Twisted Terminal (Type 3) and Terminal End Unit (Type 4). These end sections are installed to provide smoother endings in a guardrail system.
Cost of installing safety barriers for roads and highways is always a major concern for many highway authorities. W-beam Guardrail system is an inexpensive and highly effective safety solution for roads and highways.
Oval shoulder and round head splice bolts are standard features in the w-beam guardrail system in order to minimize protrusion on the surface of the safety barrier. All splice bolts, post bolts and nuts conforms to ASTM A307 and are hot dip galvanized.
A cost-effective road safety barrier system, GALVACO W-Beam Guardrails are manufactured with high strength steel and installed on multiple posts to form a strong band to absorb sudden impact from vehicles
Likelihood of vehicle overturning is less with a w-beam metal guardrail due to its impact absorption ability, compared to concrete barrier which is stiff.
Variety of end sections are available in the GALVACO W-Beam Guardrail system including "Fish-Tail" End Treatment, Terminal Anchorage Unit (Type 2), 90° Twisted Terminal (Type 3) and Terminal End Unit (Type 4). These end sections are installed to provide smoother endings in a guardrail system.
Cost of installing safety barriers for roads and highways is always a major concern for many highway authorities. W-beam Guardrail system is an inexpensive and highly effective safety solution for roads and highways.
Oval shoulder and round head splice bolts are standard features in the w-beam guardrail system in order to minimize protrusion on the surface of the safety barrier. All splice bolts, post bolts and nuts conforms to ASTM A307 and are hot dip galvanized.

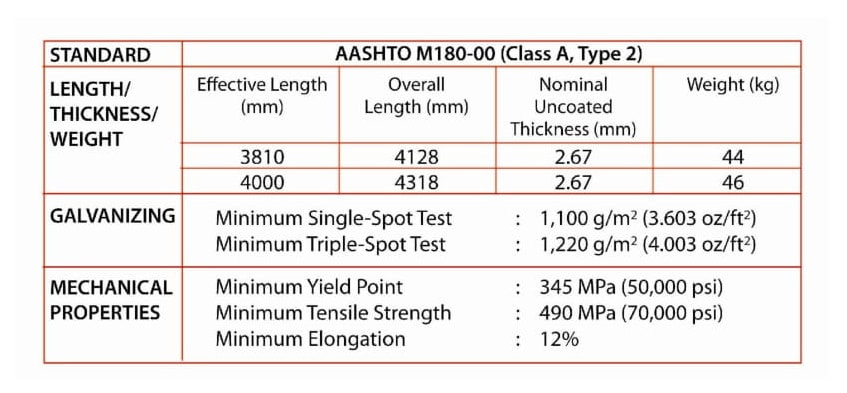

SPECIFICATION & TECHNICAL DATA BEAMS

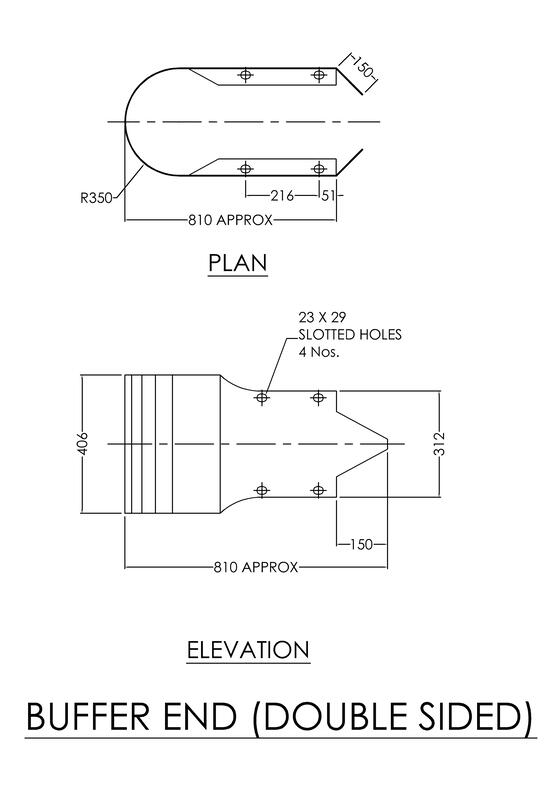

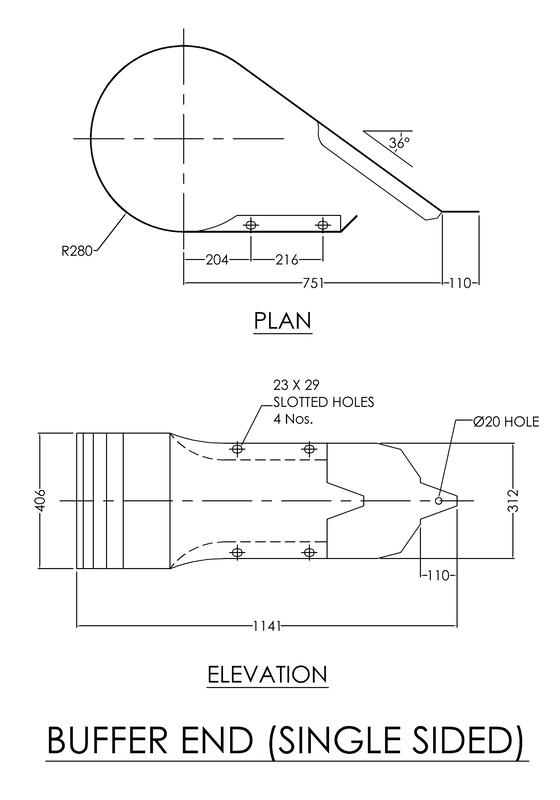

GUARDRAIL DRAWING
GALVACO GUARDRAIL INSTALLATION
GALVACO WIRE ROPE GUARDRAIL

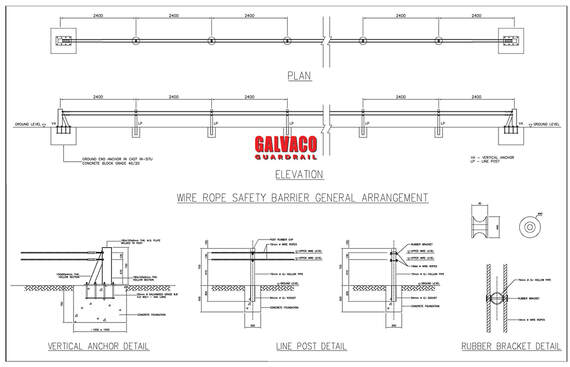

DESCRIPTION OF THE 4 WIRE ROPE GUARDRAIL SYSTEM
Wire rope guardrail is an flexible safety rail. Galvaco wire rope system comprises of 4 numbers of core strength wire ropes. These 4 wire ropes are tensioned between two H beam end post and bolted into a huge mass concrete foundation. The mass concrete is planted into the ground. Each of the End Anchorage are constructed at less than 200 meters apart. Between the two End Anchorage units are intermediate post placed between 2 meter to 2.5 meters apart. The 4 wire ropes are held in position at vehicle bumper height of 600 mm above road pavement level by these intermediate post. These post acts as a holder and can be easily replaced by pulling out from a slot in the concrete footing
